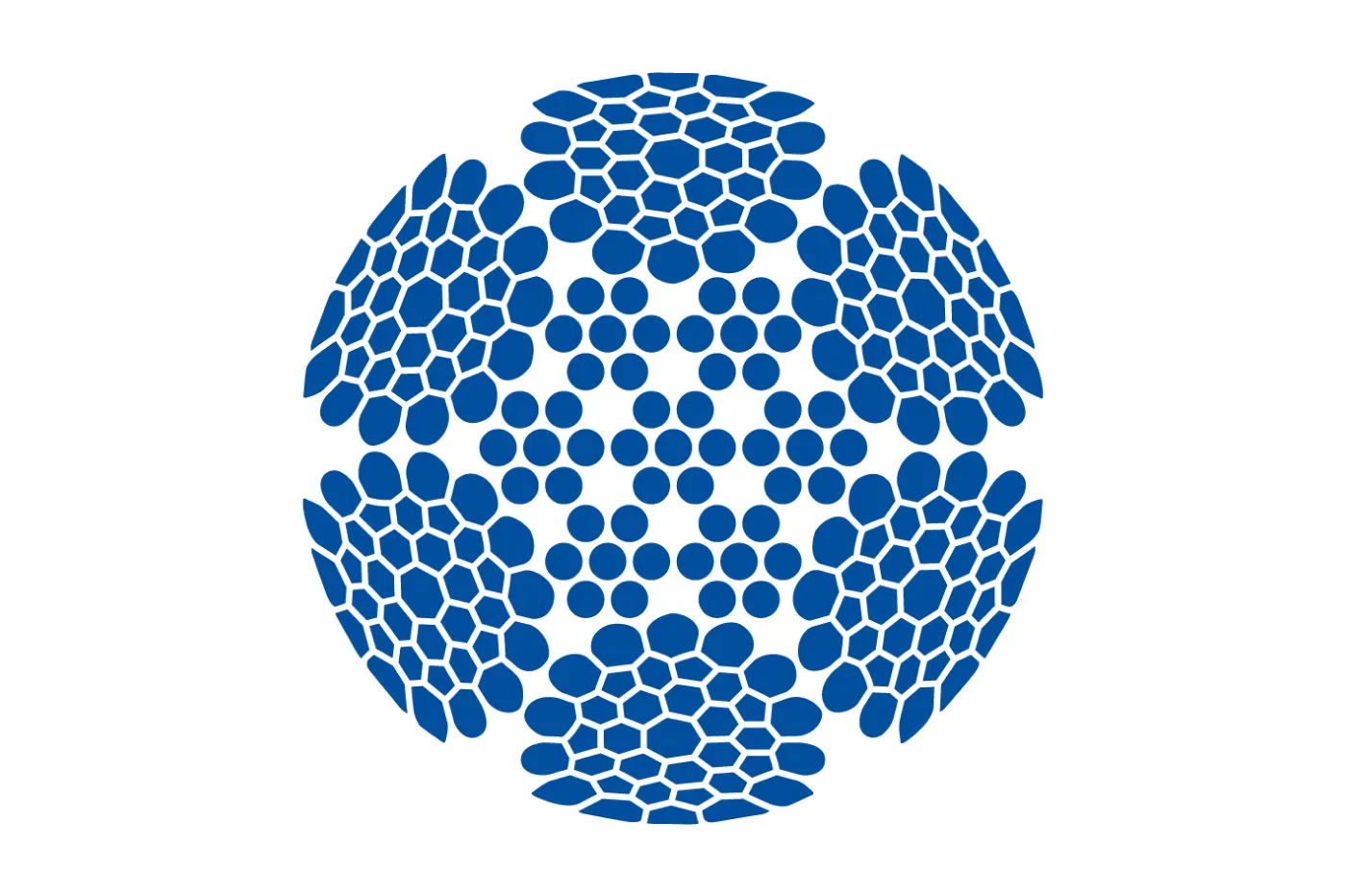

Jakob 6 x 36 WS + WC Compacted Wire Rope
The Jakob 6 x 36 WS + WC compacted is a high-strength, rope-compacted round strand wire rope with high breaking strength and very high flexibility, in 13–22 mm with minimum breaking loads of 153–401 kN, for skidding winches and yarders.
- Rope-compacted wire rope, 6 x 36 WS + WC
- 13–22 mm, minimum breaking load 153–401 kN
- Bare steel wire, greased
- For skidding winches and yarders
Overview
Jakob’s 6 x 36 WS + WC compacted comes in 6 diameters, 13–22 mm, with minimum breaking loads of 153–401 kN. The rope is bare steel wire, greased.
Where it is used
This rope is for skidding winches and yarders. Jakob’s forestry ropes are made for heavy pulling in continuous work, and they wind onto the drum without twisting or crushing, so the drums and pulleys wear less.
Sizes
The table gives each diameter’s Jakob article number, minimum breaking load and weight. The minimum breaking load is the load at which the rope is rated to break, not a working load. Jakob makes other sizes on request.
Ordering
Jakob makes its forestry ropes up to order, with the diameter, length and end connectors chosen for the job. Tell us your winch, the diameter and length you need and the end fittings, and we will confirm what can be supplied.
Quick answers
Which sizes does Jakob make? The table above lists 13, 14, 16, 18, 20 and 22 mm. Jakob makes other sizes on request, so tell us the diameter you need.
Can I buy Jakob wire rope in the UK? Yes. Exc@v8 supplies Jakob’s forestry rope and chain across the UK and Ireland. Use the form below or call us.
Sizes in this range
| Designation | Jakob article no. | Minimum breaking load (kN) | Weight (kg per m) |
|---|---|---|---|
| 13 mm | 10282-1300 | 153 | 0.88 |
| 14 mm | 10282-1400 | 174 | 1.01 |
| 16 mm | 10282-1600 | 222 | 1.29 |
| 18 mm | 10282-1800 | 276 | 1.59 |
| 20 mm | 10282-2000 | 335 | 1.93 |
| 22 mm | 10282-2200 | 401 | 2.31 |
