Jakob 6 x 31 DQS + WC Wire Rope
The Jakob 6 x 31 DQS + WC is a greased round strand wire rope made of galvanized rope wires, with very high flexibility, in 11–22 mm with minimum breaking loads of 89–346 kN, for skidding winches, capstan winches, drum winches and wire rope slings.

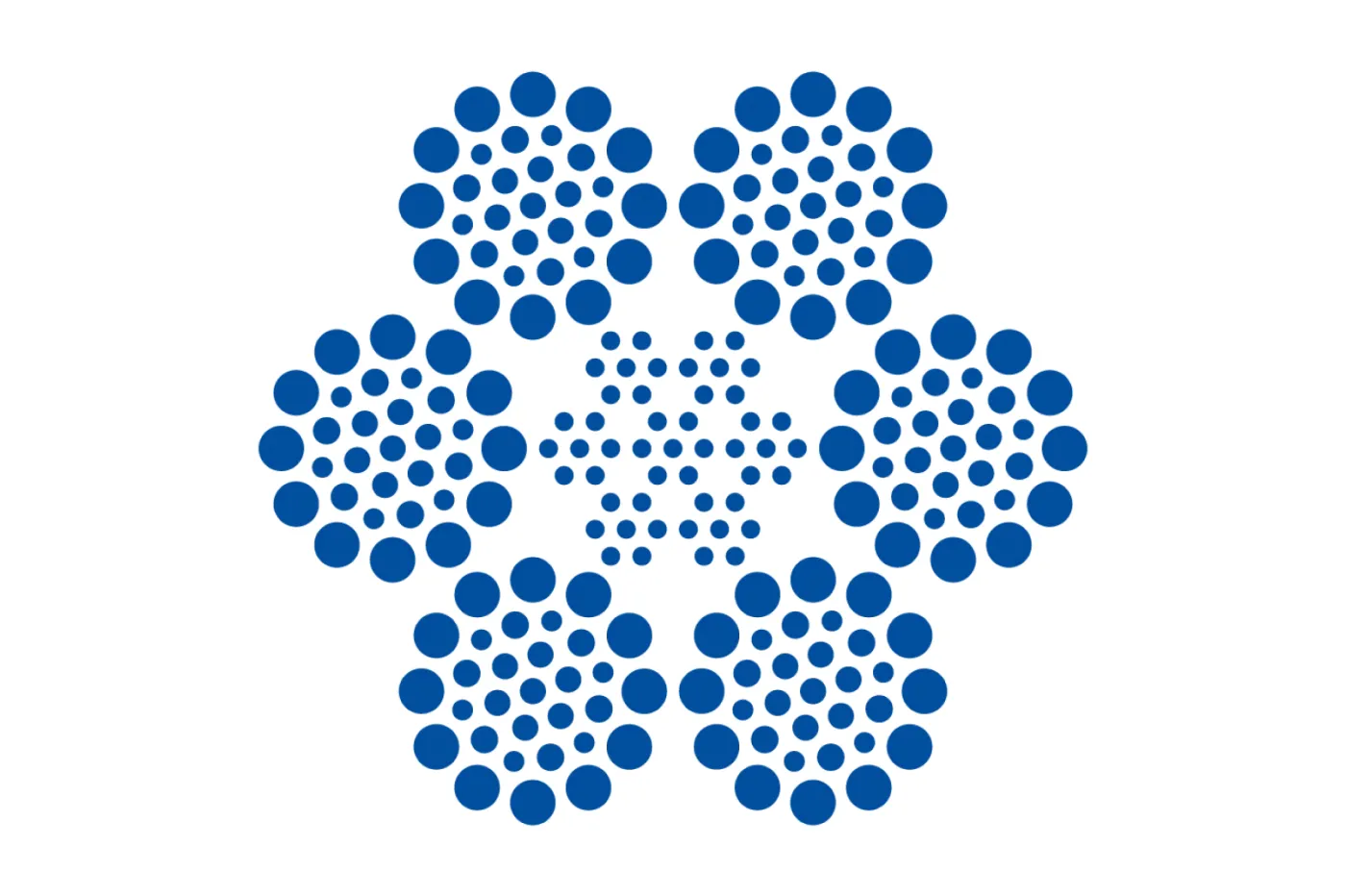

- Round strand wire rope, 6 x 31 DQS + WC
- 11–22 mm, minimum breaking load 89–346 kN
- Galvanized rope wires, greased
- For skidding winches, capstan winches, drum winches and wire rope slings
Overview
Jakob’s 6 x 31 DQS + WC comes in 10 diameters, 11–22 mm, with minimum breaking loads of 89–346 kN.
Where it is used
This rope is for skidding winches, capstan winches, drum winches and wire rope slings. It is also for winches and excavators. Jakob’s forestry ropes are made for heavy pulling in continuous work, and they wind onto the drum without twisting or crushing, so the drums and pulleys wear less.
Sizes
The table gives each diameter’s Jakob article number, minimum breaking load and weight. The minimum breaking load is the load at which the rope is rated to break, not a working load. Jakob makes other sizes on request.
Ordering
Jakob makes its forestry ropes up to order, with the diameter, length and end connectors chosen for the job. Tell us your winch, the diameter and length you need and the end fittings, and we will confirm what can be supplied.
Quick answers
Why is the 22 mm size a 6 x 36 DQS? The 11–20 mm sizes are 6 x 31 DQS + WC, and the 22 mm size, article 10271-2200, is a 6 x 36 DQS + WC.
Can I buy Jakob wire rope in the UK? Yes. Exc@v8 supplies Jakob’s forestry rope and chain across the UK and Ireland. Use the form below or call us.
Sizes in this range
| Designation | Jakob article no. | Minimum breaking load (kN) | Weight (kg per m) |
|---|---|---|---|
| 11 mm | 10270-1100 | 89 | 0.49 |
| 12 mm | 10270-1200 | 104 | 0.57 |
| 13 mm | 10270-1300 | 116 | 0.64 |
| 14 mm | 10270-1400 | 134 | 0.73 |
| 15 mm | 10270-1500 | 154 | 0.83 |
| 16 mm | 10270-1600 | 173 | 0.93 |
| 18 mm | 10270-1800 | 224 | 1.21 |
| 19 mm | 10270-1900 | 247 | 1.33 |
| 20 mm | 10270-2000 | 279 | 1.54 |
| 22 mm (6 x 36 DQS + WC) | 10271-2200 | 346 | 1.89 |
