Jakob 6 x 19 Seale + WC Compacted Wire Rope

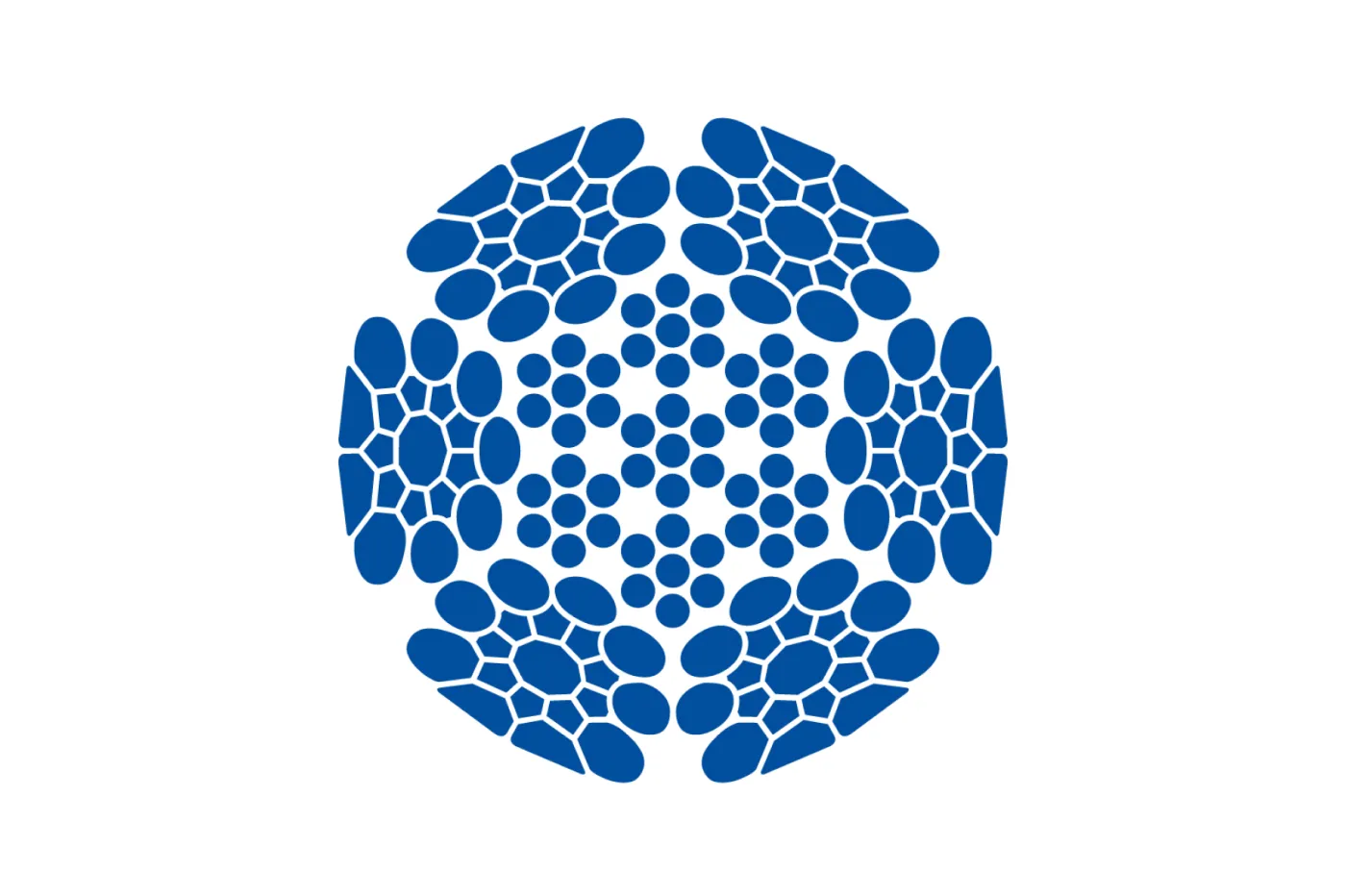

The Jakob 6 x 19 Seale + WC compacted is a high-strength, rope-compacted round strand wire rope with a particularly round cross-section, in 8–12 mm with minimum breaking loads of 66–134 kN, for skidding winches and yarders.
- Rope-compacted wire rope, 6 x 19 Seale + WC
- 8–12 mm, minimum breaking load 66–134 kN
- Bare steel wire, greased
- For skidding winches and yarders
Overview
Jakob’s 6 x 19 Seale + WC compacted comes in 5 diameters, 8–12 mm, with minimum breaking loads of 66–134 kN. The rope is bare steel wire, greased.
Where it is used
This rope is for skidding winches and yarders. Jakob’s forestry ropes are made for heavy pulling in continuous work, and they wind onto the drum without twisting or crushing, so the drums and pulleys wear less.
Sizes
The table gives each diameter’s Jakob article number, minimum breaking load and weight. The minimum breaking load is the load at which the rope is rated to break, not a working load. Jakob makes other sizes on request.
Ordering
Jakob makes its forestry ropes up to order, with the diameter, length and end connectors chosen for the job. Tell us your winch, the diameter and length you need and the end fittings, and we will confirm what can be supplied.
Quick answers
How does it compare with the standard 6 x 19 Seale? Compaction gives a higher breaking load at the same diameter. At 10 mm this rope is rated 97 kN, against 70 kN for the standard 6 x 19 Seale + WC.
Can I buy Jakob wire rope in the UK? Yes. Exc@v8 supplies Jakob’s forestry rope and chain across the UK and Ireland. Use the form below or call us.
Sizes in this range
| Designation | Jakob article no. | Minimum breaking load (kN) | Weight (kg per m) |
|---|---|---|---|
| 8 mm | 10280-0800 | 66 | 0.37 |
| 9 mm | 10280-0900 | 81 | 0.45 |
| 10 mm | 10280-1000 | 97 | 0.54 |
| 11 mm | 10280-1100 | 114 | 0.64 |
| 12 mm | 10280-1200 | 134 | 0.74 |
